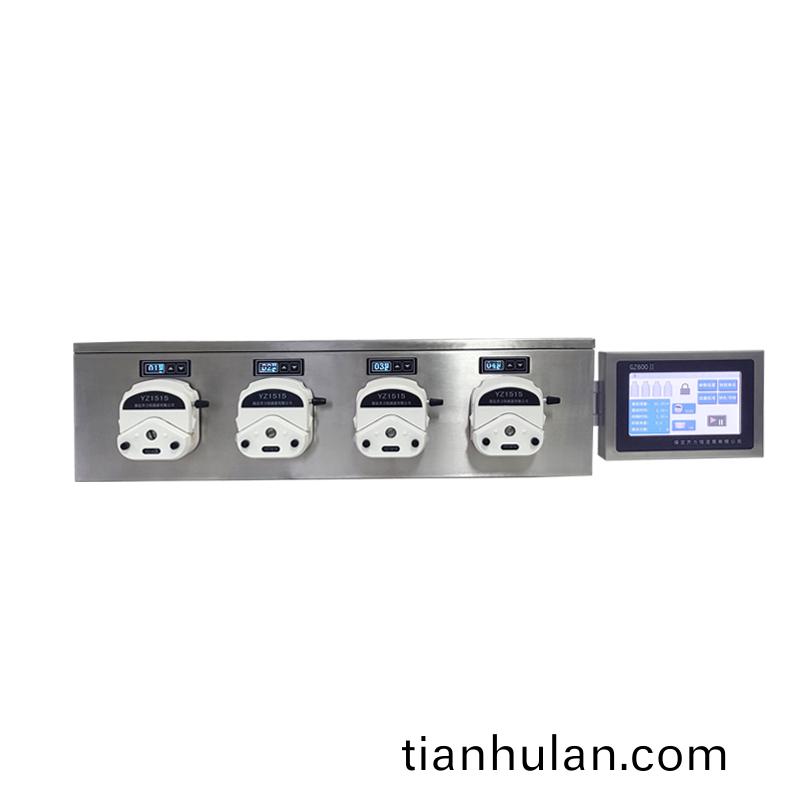

The GZ600Ⅲ filling system adopts industrial-grade color touch LCD screen control, animation + data display filling status; can expand multiple groups of filling units, arbitrarily set the effectiveness of the filling unit, has the function of liquid volume correction, and has a wide range of filling liquid volume. It can be filled with 0.1ml, suitable for filling with various pump heads: YZ1515, YZ2515, DMD15.
High subdivision and precise angle control technology to realize high-precision filling.
Color touch screen control, friendly interface, animation display filling status, and filling parameters and system settings are displayed on the same screen.
The intelligent calibration function automatically calibrates the filling volume before production to ensure filling accuracy.

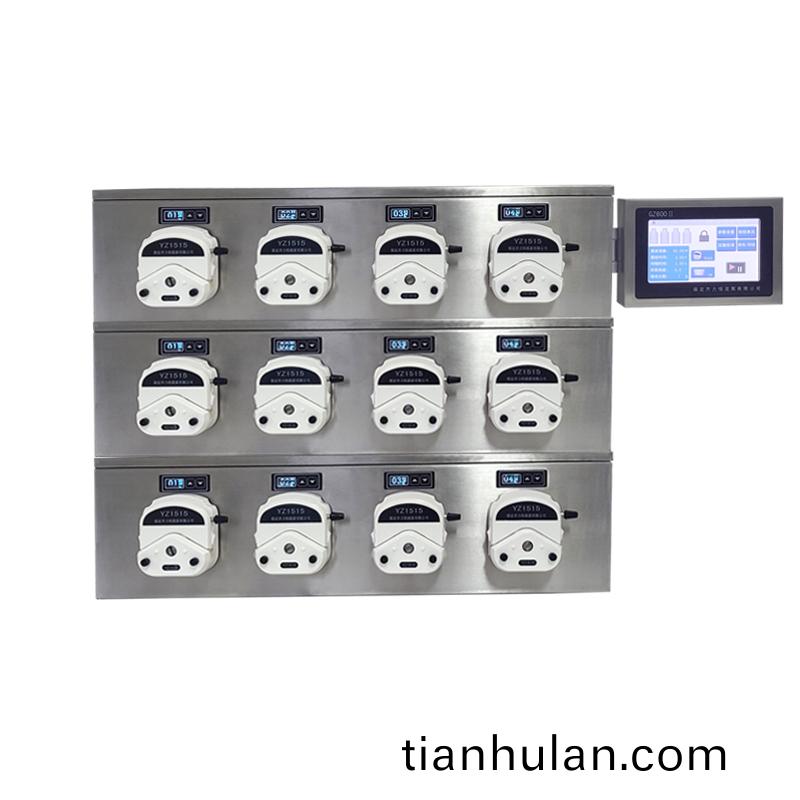

Up to 32 filling channels can be arbitrarily expanded on one controller, saving costs to the greatest extent.
The effective unit is set, and one or several filling channels can be opened or closed arbitrarily during use.
The suction angle is set to avoid liquid leakage during shutdown.
External control start and stop function, the two modes can be switched for use.
Each channel independently receives the lack of bottle stop irrigation signal to realize the single channel lack of bottle stop irrigation.
Quickly fill or recycle, you can clean the pipeline and fill the pipeline with liquid.
304 stainless steel shell, anti-corrosion, no rust.
High subdivision and precise angle control technology to realize high-precision filling.
Color touch screen control, friendly interface, animation display filling status, and filling parameters and system settings are displayed on the same screen.
The intelligent calibration function automatically calibrates the filling volume before production to ensure filling accuracy.
Up to 32 filling channels can be arbitrarily expanded on one controller, saving costs to the greatest extent.
The effective unit is set, and one or several filling channels can be opened or closed arbitrarily during use.
The suction angle is set to avoid liquid leakage during shutdown.
External control start and stop function, the two modes can be switched for use.
Each channel independently receives the lack of bottle stop irrigation signal to realize the single channel lack of bottle stop irrigation.
Quickly fill or recycle, you can clean the pipeline and fill the pipeline with liquid.
304 stainless steel shell, anti-corrosion, no rust.
| Filling liquid volume range | 0.1-9999.99mL | Full speed | 600rpm |
| Filling time range | 0.1-9999.99s | External control method | Switch signal |
| Interval time range | 0.1-9999.99s | Power consumption | <200W(Single group） |
| Liquid volume resolution | 0.01mL | Temperature | 0-40℃ |
| Time resolution | 0.01s | Relative humidity | <80% |
| Filling frequency range | 1-9999次(ci)，0 is unlimited | Size (mm) | Drive: 663*219.5*176.5 Controller: 220*150*50 |
| Speed range | 0.01-600rpm | Weight |
Drive: 14.0kg (per unit) Controller: 1.50kg |
| Suction angle | 0-360° | Protection level | IP31 |
| Adapted pump head | Reference filling volume (ml) | Applicable hose | Reference filling time (s) | Filling accuracy error | Filling needle inner diameter | Reference output |
| （mm） | ||||||
| YZ1515 | 0.3-0.5 | 13# | 1-1.2 | ≤±2% | ≤0.5 | 27-30 |
| 1.0-2.3 | 14# | ≤1.0 | ||||
| 2.6-5.1 | 19# | ≤1.5 | ||||
| 4.6-9.1 | 16# | ≤2.0 | ||||
| 10~19 | 25# | ≤3.0 | ||||
| 15-30 | 17# | ≤3.0 | ||||
| YZ2515 | 8.0-17 | 15# | ≤3.0 | |||
| 12~24 | 24# | ≤3.0 | ||||
| DMD15 | 0.1-0.9 | 13#*2 | ≤3.0 | |||
| 0.2-2.3 | 14#*2 | ≤3.0 | ||||
| 0.5-5.9 | 19#*2 | ≤3.0 | ||||
| 0.2-10 | 16#*2 | ≤3.0 | ||||
| 5.0-25 | 25#*2 | ≤3.0 |
