Product features

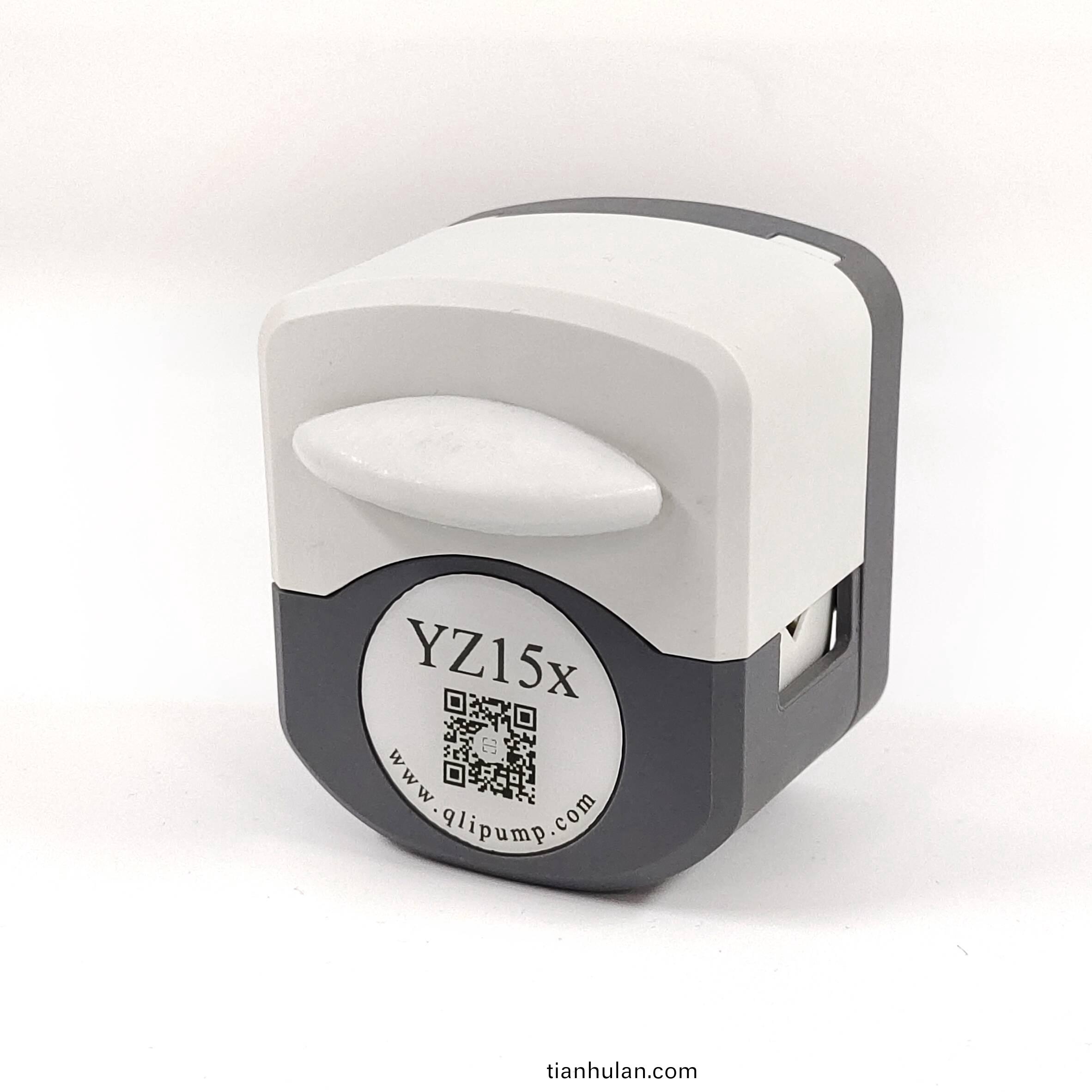

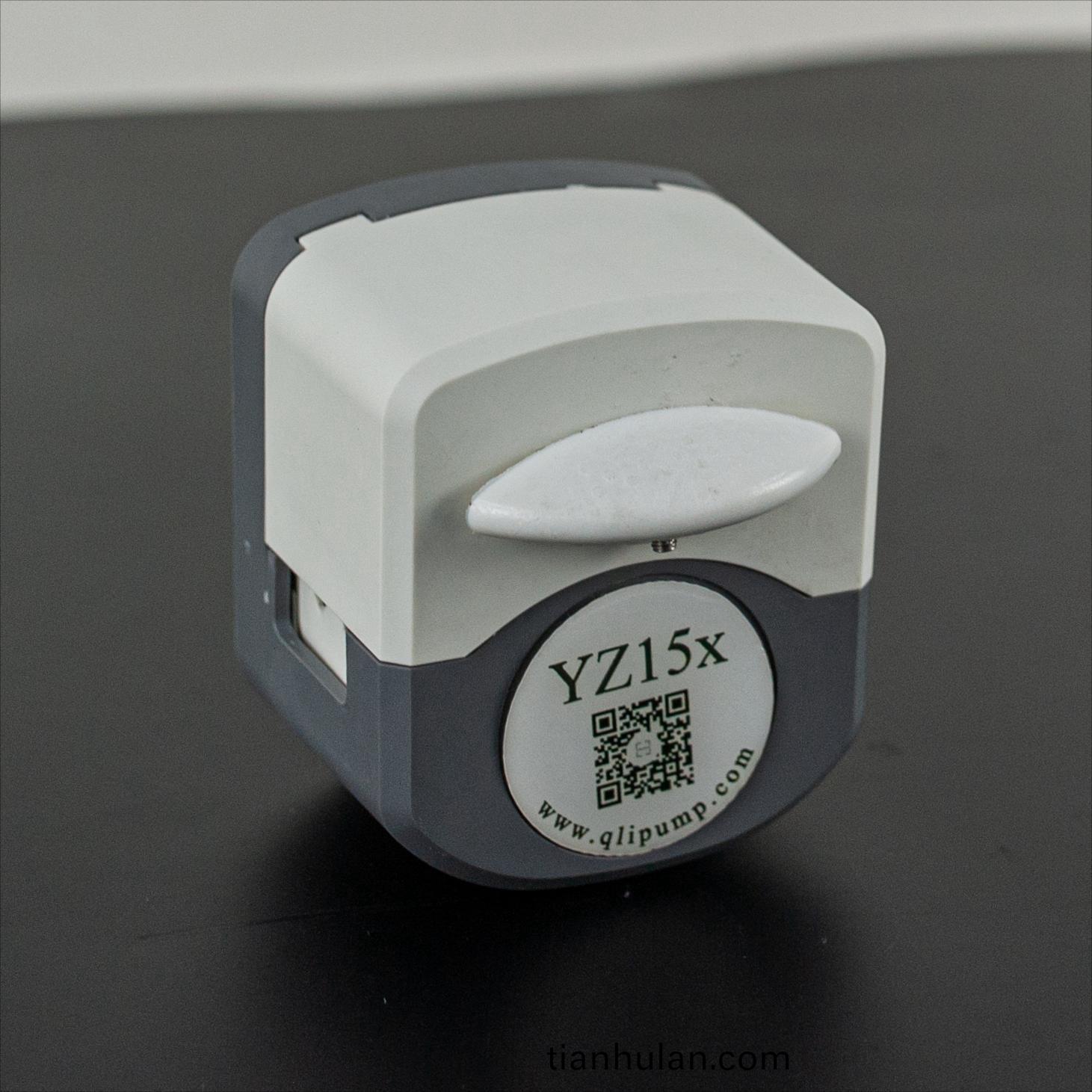

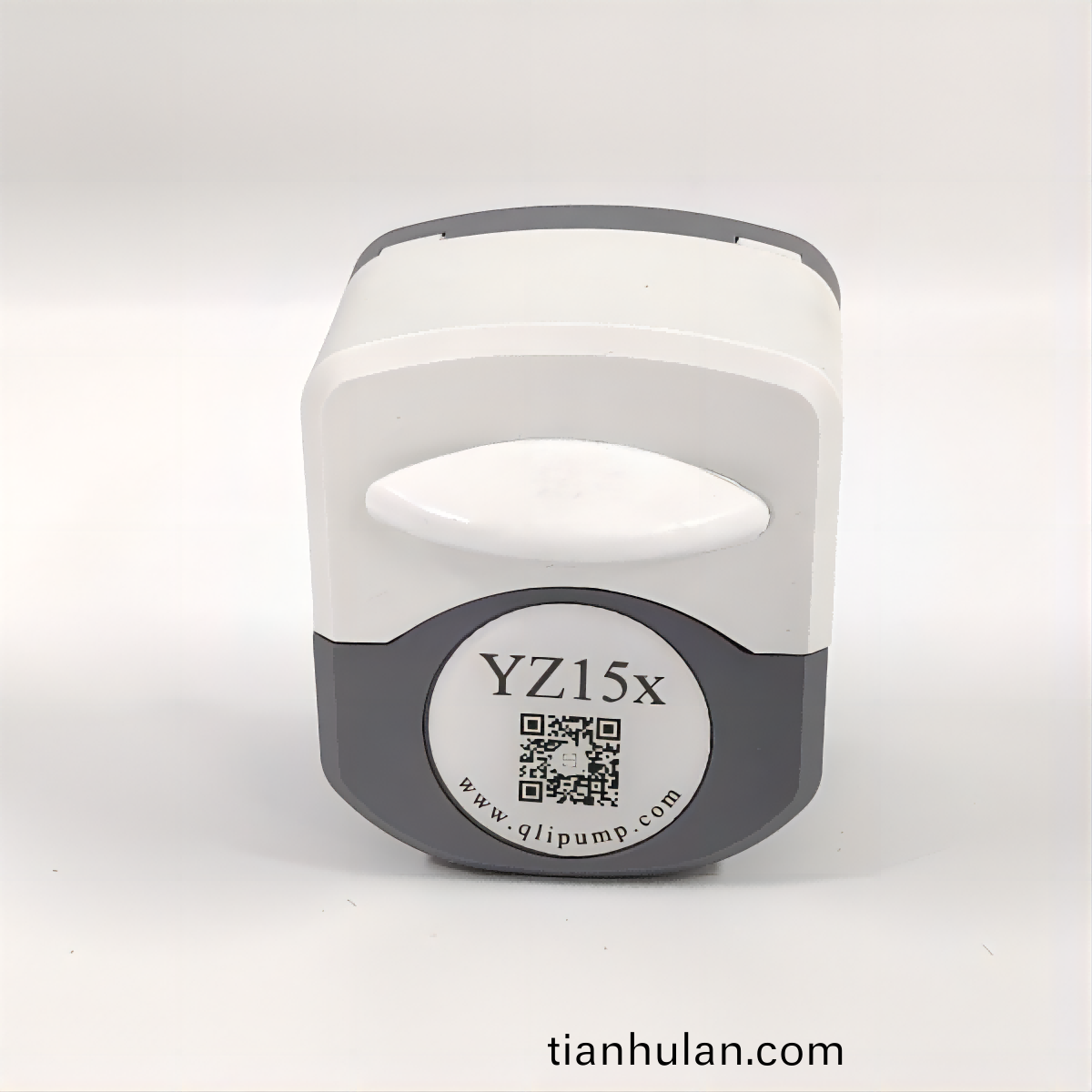

1. Beautiful appearance and small size.
2. The housing uses IXEF
3. Engineering plastics with high strength and stability
4. The front knob opens the upper pressing block, which is easy to operate and saves operating space.
5. It is convenient to replace the hose and has an adaptive pipe clamping device.
6. Single channel and double channel are available, which are applicable to a variety of hoses of different materials and sizes to meet different flow and liquid requirements
1. Beautiful appearance and small size.
2. The housing uses IXEF
3. Engineering plastics with high strength and stability
4. The front knob opens the upper pressing block, which is easy to operate and saves operating space.
5. It is convenient to replace the hose and has an adaptive pipe clamping device.
6. Single channel and double channel are available, which are applicable to a variety of hoses of different materials and sizes to meet different flow and liquid requirements
|
Product model |
Spindle type | Number of channels | Number of rollers | Speed range | Applicable hose specification | Maximum reference flow of single channel | Weight (g) |
| YZ15x-13-C | the major axis | 1 | 3 | ≤300(rpm) | 13#、14#、 19#、16#、25# | 384 ml/min | 230 |
| YZ15x-13-D | minor axis | 224 | |||||
| YZ15x-23-C | the major axis | 2 | 13#、14#、 19#、16# | 189 ml/min | 230 | ||
| YZ15x-23-D | minor axis | 224 | |||||
| YZ15x-16-C | the major axis | 1 | 6 | 13#、14#、 19#、16#、25# | 186 ml/min | 248 | |
| YZ15x-16-D | minor axis | 242 | |||||
| YZ15x-26-C | the major axis | 2 | 13#、14#、 19#、16# | 126 ml/min | 248 | ||
| YZ15x-26-D | minor axis | 242 |
| minor axis | 13# | 14# | 19# | 16# | 25 |
| Three rollers | 17 | 60 | 105 | 189 | 384 |
| Six rollers | 8.7 | 38 | 69 | 126 | 186 |
Note: only single channel flow, double channel flow
