Suitable for ink delivery, COD water treatment, environmental protection sampling, medical machinery supporting
The stepping motor is driven by multiple subdivision methods, with high precision, and can be equipped with DG series pump heads.
| OEM02 technical indicators | |
| range of rotation: | <100rpm (DG pump head), <600rpm (YZ pump head) |
| motor: | 57 stepper motor |
| Applicable power supply: | DC 12V/24V |
| Applicable environment: | Temperature 0-40℃, humidity <80% |
| Power consumption: | ≤60W |
| model | Pump head | Applicable hose | Flow range (ml/min) |

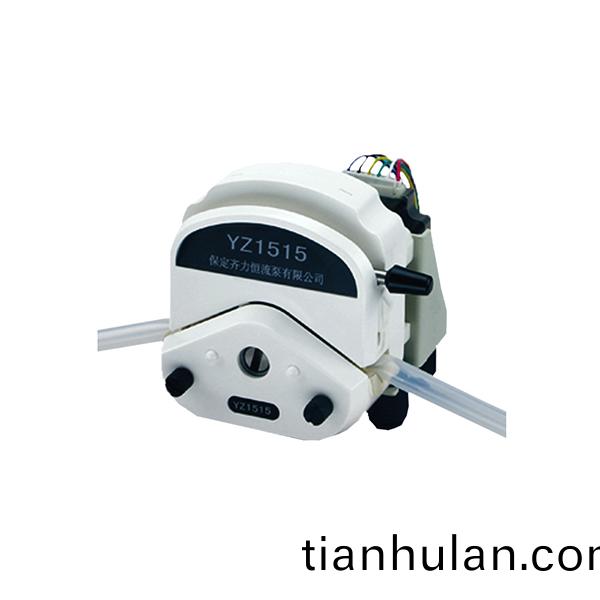

| OEM02 | YZ1515 | 13#14#19#16#25#17#18# | ≤2280 |
| YZ2515 | 15#24# | ≤1740 | |
| DG係列 | Wall thickness≤1mm | ≤48 | |
|
Inner diameter≤3.17mm |
